Grundfos
Multi Stage Inline Vertical Pumps

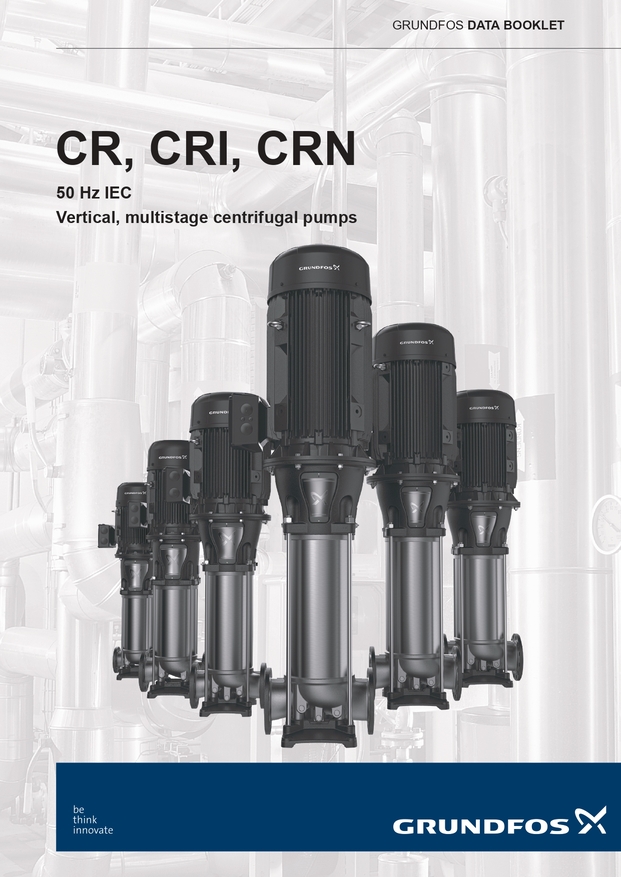

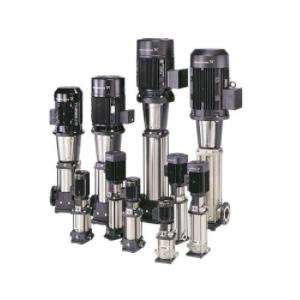

CR
Vertical, multistage centrifugal pump with inlet and outlet port on the same level. The pump head and base are made of cast iron and other liquid contact parts are made of stainless steel (EN 1.4301). Suitable for transporting non-corrosive liquids.
Max flow: 336 m³/h
Max head: 362 m
Liquid Temperature: -30 .. 120 °C
Max pressure: 40 bar

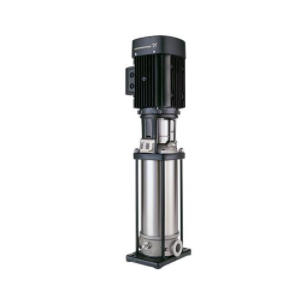

CRI
Vertical, multistage centrifugal pump with inlet and outlet port on the same level. The liquid contact parts are made of stainless steel (EN 1.4301). Suitable for transporting non-corrosive liquids.
Max flow: 30 m³/h
Max head: 252 m
Liquid Temperature: -20 .. 120 °C
Max pressure: 25 bar

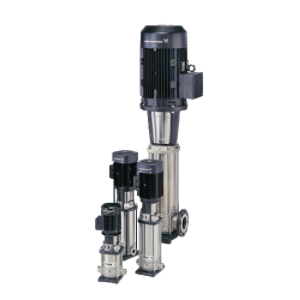

CRN
Vertical, multistage centrifugal pump with inlet and outlet port on the same level. The liquid contact parts are made of high-grade stainless steel (EN 1.4401). Suitable for transporting industrial type of liquids.
Max flow: 244 m³/h
Max head: 362 m
Liquid Temperature: -40 .. 150 °C
Max pressure: 40 bar

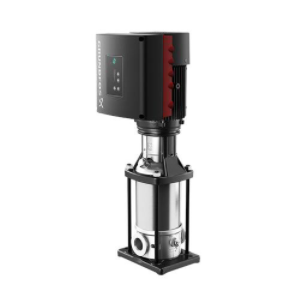

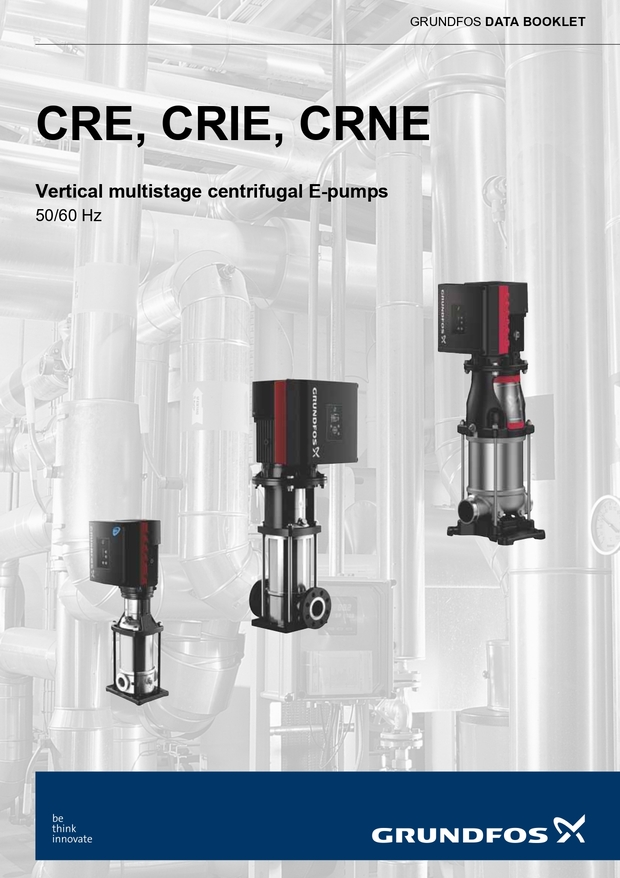

CRE
CR version with integrated frequency converter.
Max flow: 241 m³/h
Max head: 254 m
Liquid Temperature: -30 .. 120 °C
Max pressure: 30 bar
CRIE
CRI version with integrated frequency converter.
Max flow: 10 m³/h
Max head: 244 m
Liquid Temperature: -20 .. 120 °C
Max pressure: 25 bar
CRNE
CRN version with integrated frequency converter.
Max flow: 241 m³/h
Max head: 252 m
Liquid Temperature: -40 .. 120 °C
Max pressure: 30 bar

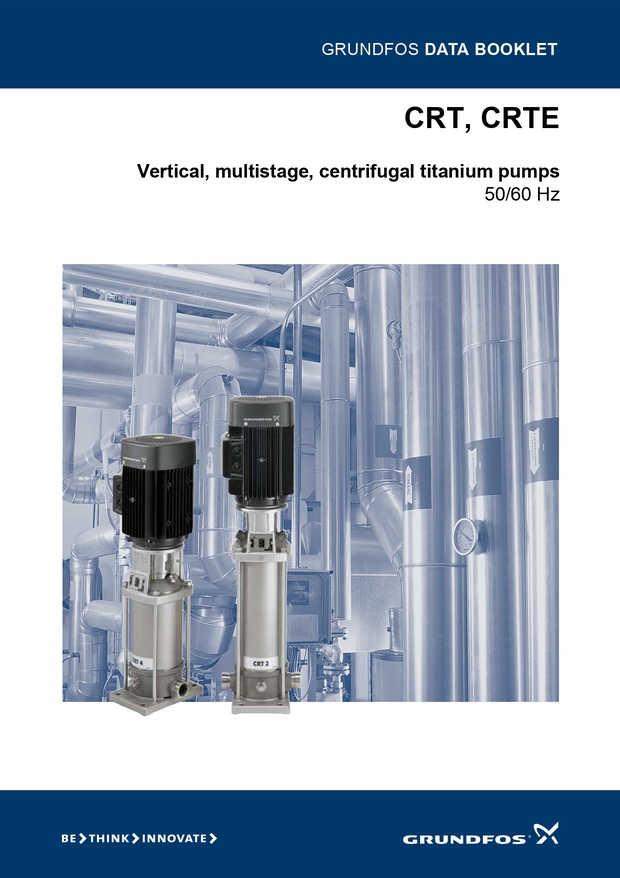

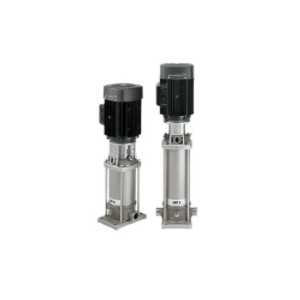

CRT
Vertical, multistage centrifugal pump with inlet and outlet port on the same level. The liquid contact parts are made of titanium. Suitable for transporting wide range of acids, alkalis, industrial chemicals type of liquid.
Max flow: 23 m³/h
Max head: 246 m
Liquid Temperature: -25 .. 120 °C
Data Booklets
