Grundfos
General End Suction Pumps

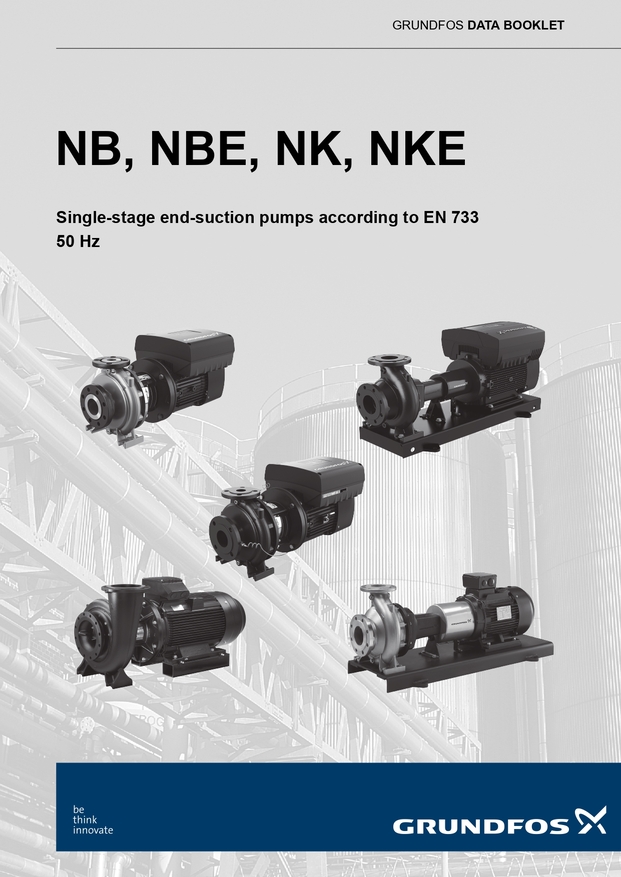

NB, NBE
Single-stage, close-coupled end suction centrifugal pumps for pressure boosting, industrial liquid transfer, and HVAC systems. NB series dimension and rated performance are according to EN 733 standard. Optionally, NBE version is equipped with frequency controlled motors.
Max flow: 593 m³/h
Max head: 69 m
Liquid Temperature: -25 .. 120 °C
Max pressure: 16 bar

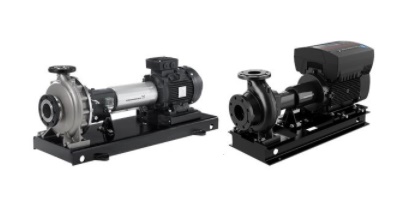

NK, NKE
Single-stage, long-coupled end suction centrifugal pumps for pressure boosting, industrial liquid transfer, and HVAC systems. NK series dimension and rated performance are according to EN 733 standard. Optionally, NKE version is equipped with frequency controlled motors.
Max flow: 270 m³/h
Max head: 107 m
Liquid Temperature: -25 .. 120 °C
Max pressure: 16 bar

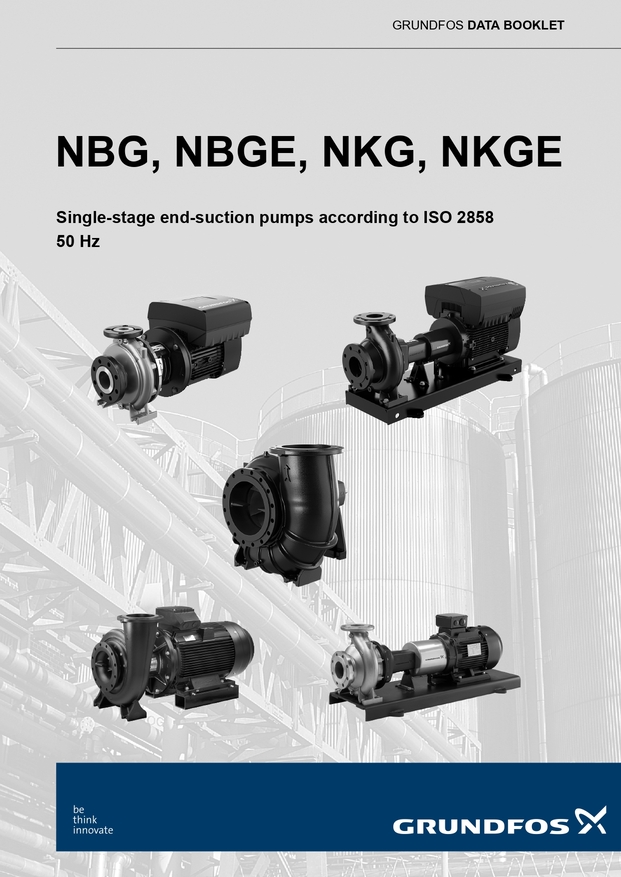

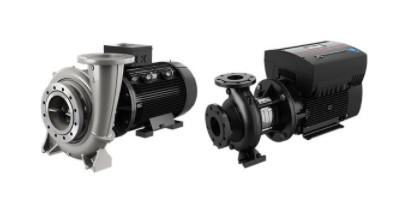

NBG, NBGE
Single-stage, close-coupled end suction centrifugal pumps for pressure boosting, industrial liquid transfer, and HVAC systems. NBG series dimension and rated performance are according to ISO 2858 standard. Optionally, NBGE version is equipped with frequency controlled motors.
Max flow: 1395 m³/h
Max head: 177 m
Liquid Temperature: -25 .. 140 °C
Max pressure: 25 bar

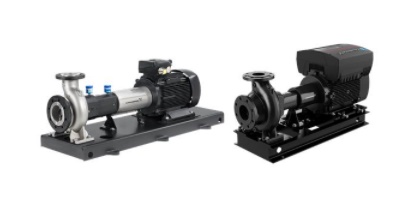

NKG, NKGE
Single-stage, close-coupled end suction centrifugal pumps for pressure boosting, industrial liquid transfer, and HVAC systems. NKG series dimension and rated performance are according to ISO 2858 standard. Optionally, NKGE version is equipped with frequency controlled motors.
Max flow: 2101 m³/h
Max head: 337 m
Liquid Temperature: -25 .. 170 °C
Max pressure: 25 bar
Data Booklets
